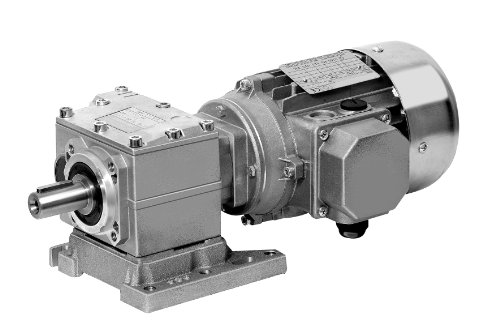

Helical geared motor HR/I 0.75kW 230/400V 50Hz model B3 n2 =16.7 rpm Md2 =398 Nm efficiency class IE2 .

Helical geared motor HR/I 0.75kW 230/400V 50Hz model B3 n2 =16.7 rpm Md2 =398 Nm efficiency class IE2?Housing: Aluminium, corrosion-inhibiting coating, with mounting holes for foot and flange mounting and with removable twist cap for easy service.

Gearing: Hardened and ground.

Lubrication: Synthetic oil (lubricated for life).

Motor: Standard three-phase motor with small flange B14, 230/400V, 50 Hz.

Other Motor versions (AC Motor, posistor, forced ventilation, break etc.) on request.


From 0.75 kW efficiency class IE2.

Light-weight, high-quality model range with many mounting options.



These maintenance free, geared motors without ventilation can be used in any mounting position.



Variable mounting:

These geared motors are supplied with a screwed-on foot mounting. If flange mounting is required or if the motor is to be mounted on an existing base plate, this foot can simply be unscrewed.



Retrofittable flange:

If the motor is to be flange mounted on the output side, a flange can be srewed on by the customer. These flanges B5 are available in several diameters and have to be ordered separately.

P [kW]	0,75
n2 [min -1]	16,7
Ma [Nm]	398
fB	1,1
i tot.	83,59
FR 1) [N]	6500
FA 2) [N]	1300
Gearbox Size	60/3
Motor Size	80B4
Weight [kg]	24,70

Helical geared motor HR/I 0.75kW 230/400V 50Hz model B3 n2 =16.7 rpm Md2 =398 Nm efficiency class IE2?
